NFT Minting Tutorial

Estimated completion time: 20 mins

This tutorial provides a step by step guide on how to mint an NFT on Immutable X. It is designed for developers building on Web3 for the first time, so anyone can follow along regardless of prior experience. This has been simplified for educational purposes and we are working on expanding the content.

By the end of this tutorial you will have:

  • Prepared an NFT collection
  • Deployed a smart contract for your NFT collection
  • Minted and listed an NFT

If you get stuck at any point, reach out on the dev-faq and dev-discussion channels in our Discord. Click here to provide feedback on the tutorial or let us know what topics you'd like to see in our documentation.

Step 1: Prerequisites

There are a few tools required for this tutorial:

Homebrew

info

Homebrew is only needed for Mac OS.

Homebrew installs the packages needed for this tutorial. Copy the command on the Homebrew website, then run in the terminal.

NodeJS

NodeJS allows us to use JavaScript to build and run applications.

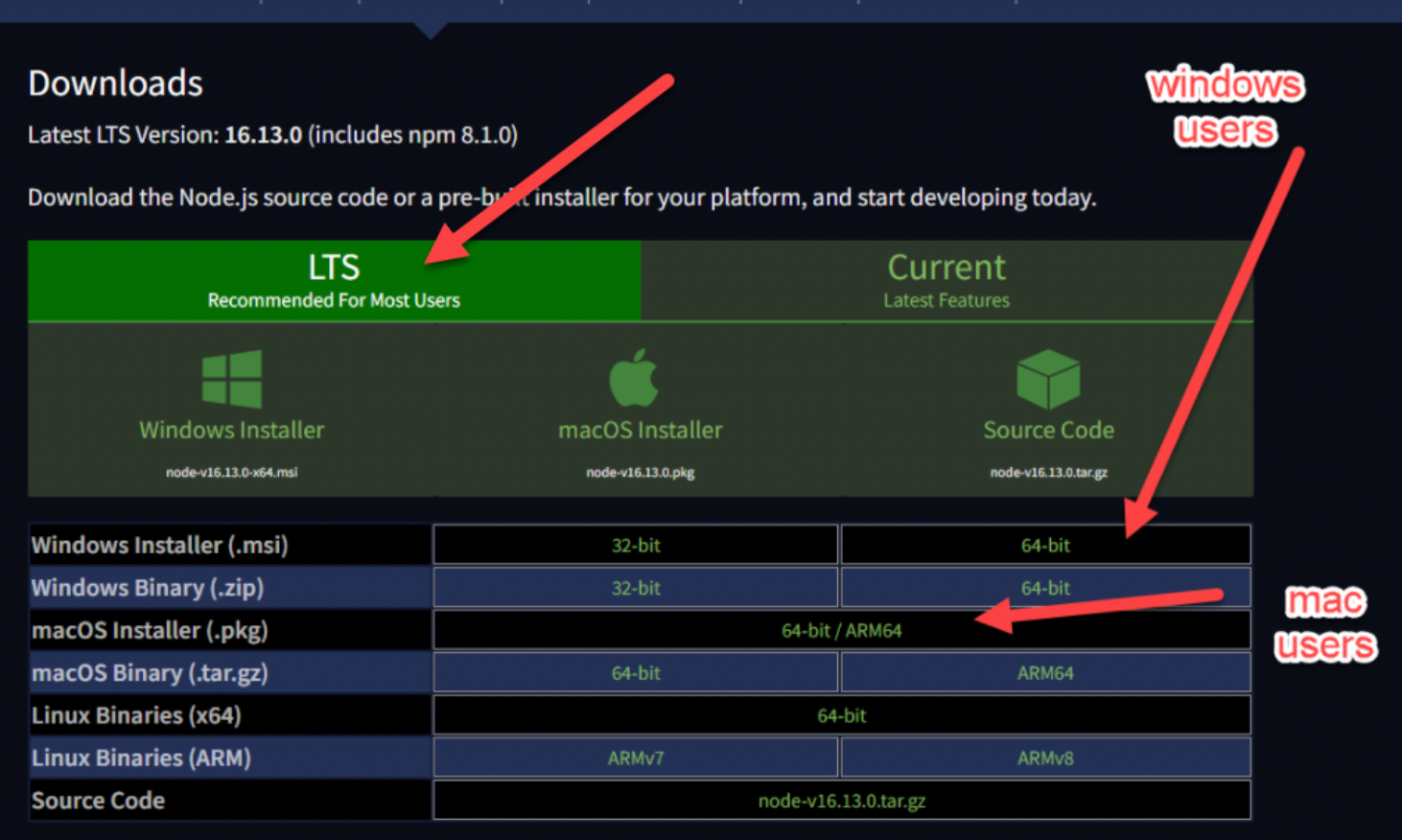

Nodejs Version

Ensure that you get the latest LTS version or you may experience issues following the turorial.

For PC users, check that NodeJS is working by opening powershell or command line and executing the command:

npm -v

For Mac users, open up the terminal and run

brew install node@16

Yarn

Yarn is an open source package manager. Follow the steps below to install:

For PC users, run the following command in powershell.

npm install yarn -g

For Mac users, run the following command in the terminal.

brew install yarn

Visual Studio Code

Visual Studio Code is the code editor we will be using for this tutorial.

Step 2: Setup MetaMask

To trade cryptocurrencies and NFTs, we need a wallet. For this tutorial, we will use Metamask.

  1. Open metamask.io to install the browser extension.
  2. Follow the steps in the plugin to create a new wallet, then record and store your seed phrase in a safe location.
  3. Ensure you display test networks
  4. Change the network selection from Ethereum Mainnet to Ropsten Test Network.
  5. Note down your private key and public key

Changing the network enables us to deploy on a testnet where we can experiment using test Eth. To learn more about transactions on Ethereum work, check out this page from the Ethereum foundation.

Step 3: Obtain rEth

To deploy our smart contract to the Ropsten test network, we’ll need some test Eth. To get test Eth you can go to the Ropsten faucet and enter your Ropsten account address, then click “Send Ropsten Eth.” It may take a few minutes for the rEth to arrive.

If this faucet doesn't work, try these alternative faucets:

Step 4: Setup Pinata

Pinata is a service that allows users to host files on the InterPlanetary File System (IPFS) network. We use Pinata to store our NFT metadata as it ensures the authenticity of the file will be verifiable and the file will always be accessible. Follow the steps below to prepare your collection:

info

You can use the free version for this tutorial, however consider creating a paid account for your real collection to ensure your images can be loaded. Be aware that your images will be publicly hosted on IPFS.

  1. Sign up to Pinata
  2. Prepare 3 images for your NFTs

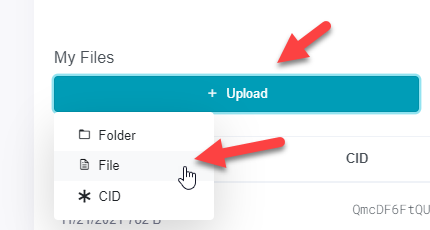

  3. Upload an image by pressing Upload and selecting the file

Pinata1

  1. Upload the remaining 2 images
  2. Note down the URL for each file

Pinata2

Your URLs should have the format https://gateway.pinata.cloud/ipfs/QmWfjs6CVu4ENgXGNfdPhgaSdzEhCsCfB5XEFUosPFGsNV

Step 5: Create Metadata

NFT Metadata contains information about the characteristics and properties of an NFT.

  1. Open Visual Studio Code

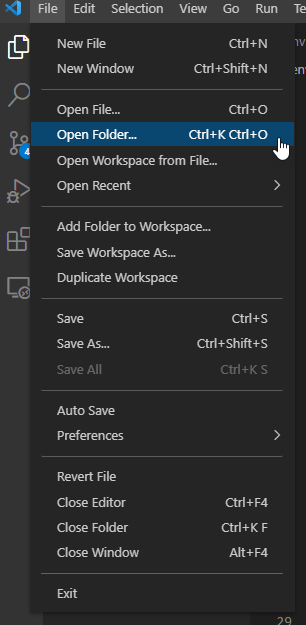

  2. Create New Folder (Open Folder --> New Folder)
  3. Press the page icon 3x to create 3 files
  4. Name the files 1,2 & 3. These are our Token IDs.

FileCreation

danger

Ensure the files are named 1, 2 & 3 or you may run into errors later.

Populate each file with the metadata for the corresponding NFT. You can use the following metadata for your test collection, however make sure to replace each image_URL with the URLs that you created earlier to host your NFT images.

{
"name": "1st NFT",
"description": "This is your 1st nft",
"image_url":"<replace this with your own IPFS picture link>",
"attack": 123,
"collectable": true,
"class": "EnumValue1"
}
{
"name": "2nd NFT",
"description": "This is your 2nd nft",
"image_url":"<replace this with your own IPFS picture link>",
"attack": 223,
"collectable": true,
"class": "EnumValue2"
}
{
"name": "3rd NFT",
"description": "This is your 3rd nft",
"image_url":"<replace this with your own IPFS picture link>",
"attack": 323,
"collectable": true,
"class": "EnumValue3"
}

Ensure you press save before uploading the folder into Pinata. Double check this by closing the file and re opening - make sure that the values have saved.

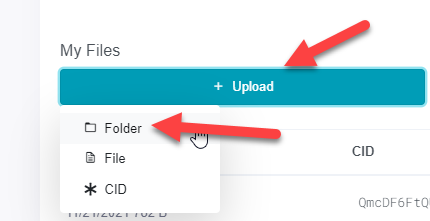

Upload Folder

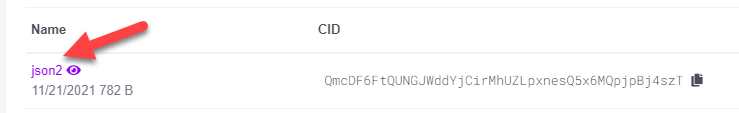

Click on the folder name to obtain your metadata API URL. This endpoint is used by the metadata crawler to add metadata to your NFTs when they are minted. Note this down.

Folder Appearance

The resulting URL should have the format https://gateway.pinata.cloud/ipfs/QmWfKt2pXLnQ2AB5jfS2KYB9K2hxFtgcMNxyndkSGT3yuj.

Check your work

Click on your metadata API URL and ensure that there are 3 files named 1,2 & 3. Click into each file and confirm the data is correct. If any of them are empty, you will need to reupload your folder.

Step 6: Create Etherscan API

An Etherscan API Key is necessary to verify that you're the owner of the smart contract that you're trying to publish. Follow the steps below:

  1. Navigate to Etherscan
  2. Sign in (or create a new account)

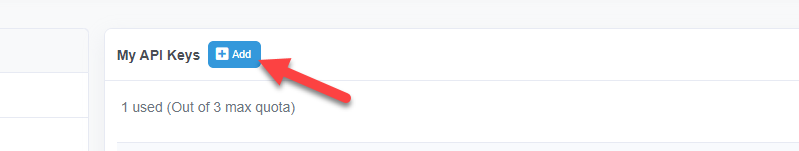

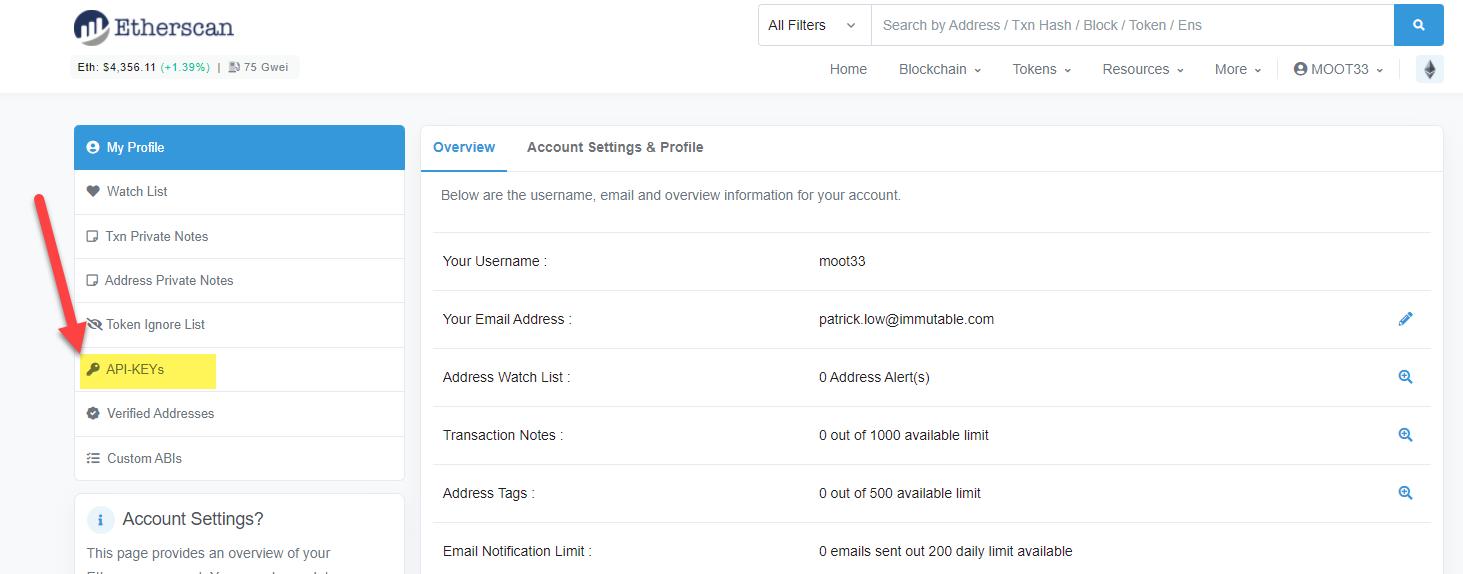

  3. Navigate to API-KEYS and add a new key

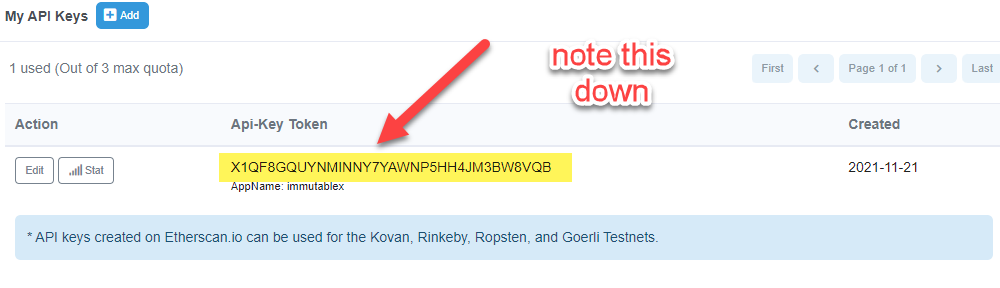

  4. Note down the generated API key.

Etherscan API Key Etherscan API Key2

Step 7: Create NFT contract

Next we will need to update the variables for our smart contract.

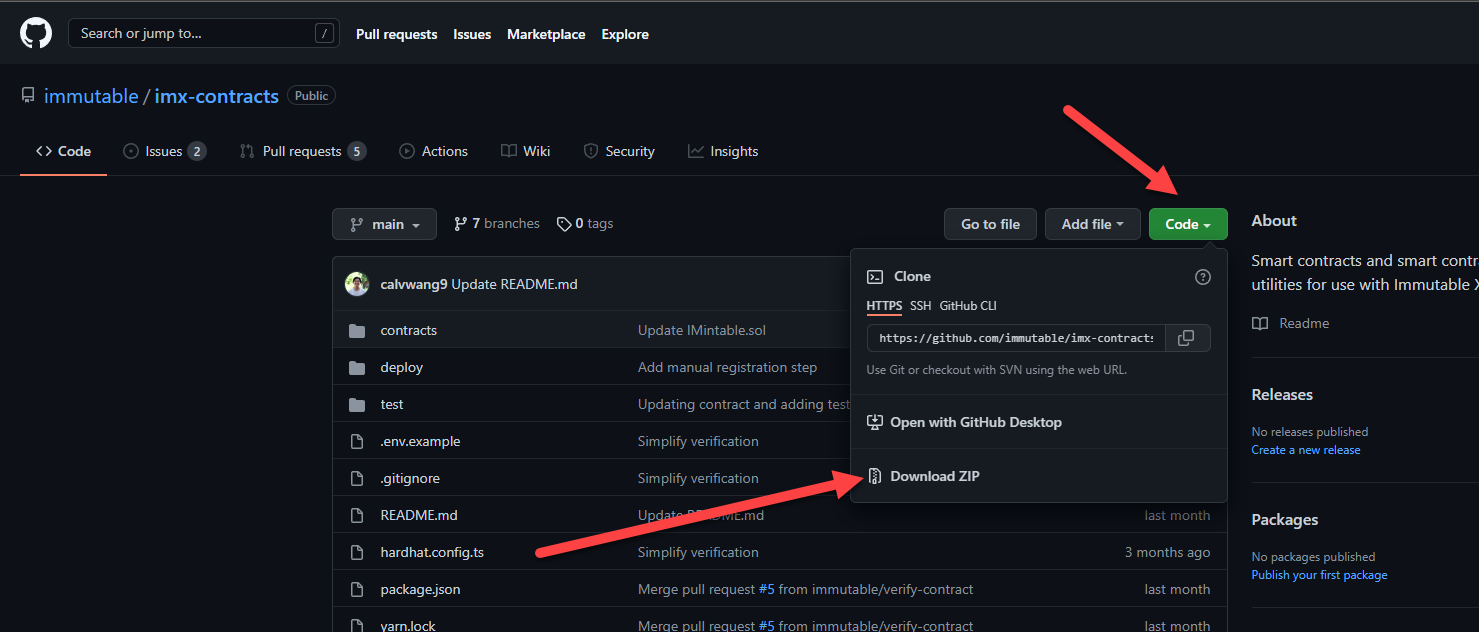

  1. Clone or download the imx-contracts code from github.
  2. Unzip the file and open it in Visual Studio Code (File--> Open Folder)
  3. Rename the .env.example to .env

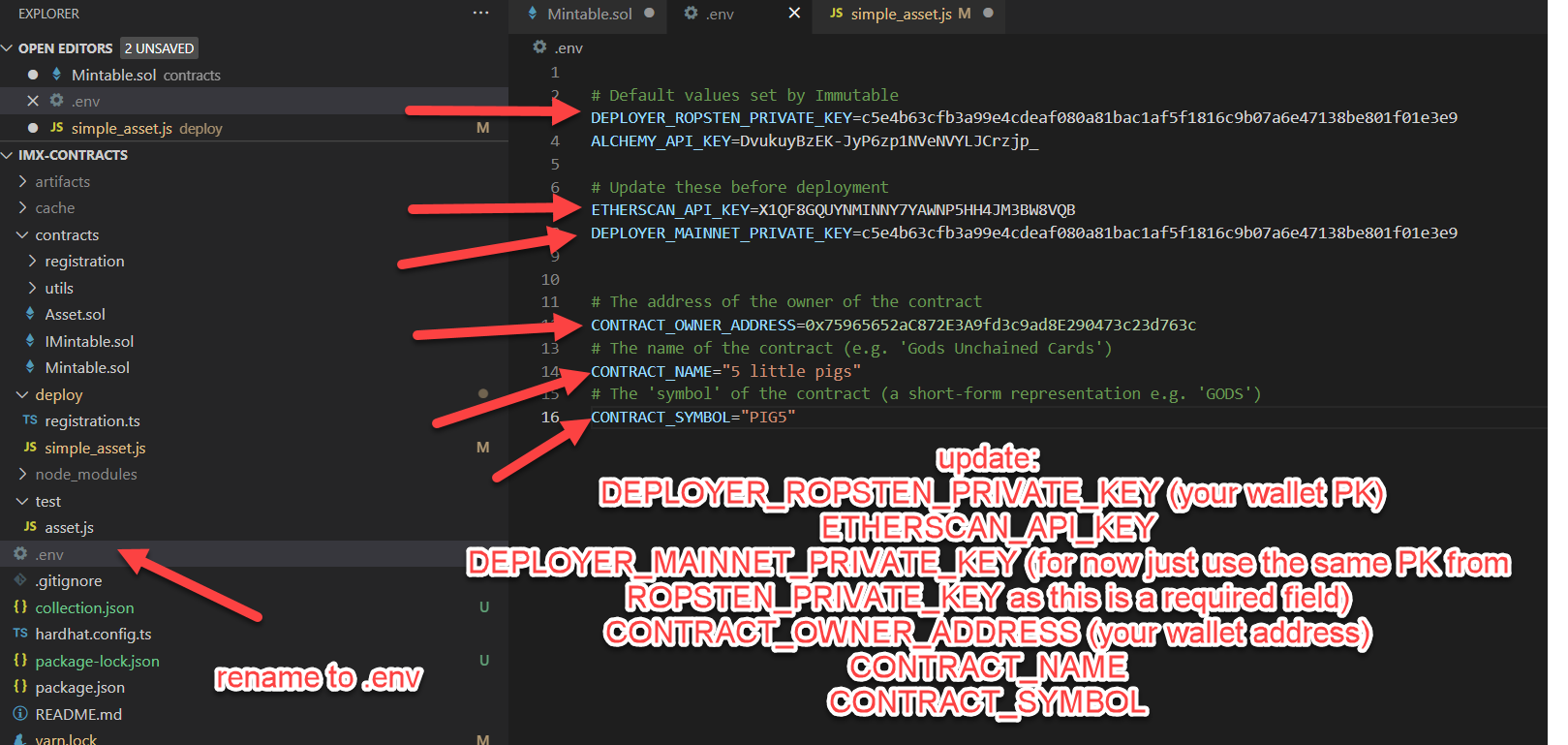

Env file

  1. Fill in the following details:
Field NameDescription
Etherscan API KeyEtherscan API Key from previous step
CONTRACT_OWNER_ADDRESSMetamask wallet address also known as public key
DEPLOYER_ROPSTEN_PRIVATE_KEY DEPLOYER_MAINNET_PRIVATE_KEYMetamask wallet private key
CONTRACT_NAMEName of your NFT collection eg "Spaghetti Adventures"
CONTRACT_SYMBOLThis is a shortened version of your collection name eg "SPAG"
Alchemy API Key

Note down the ALCHEMY_API_KEY. We do not need to update this value now, but we will use this value later.

Step 8: Install Dev library

Next we will need to install packages needed for deploying our smart contract.

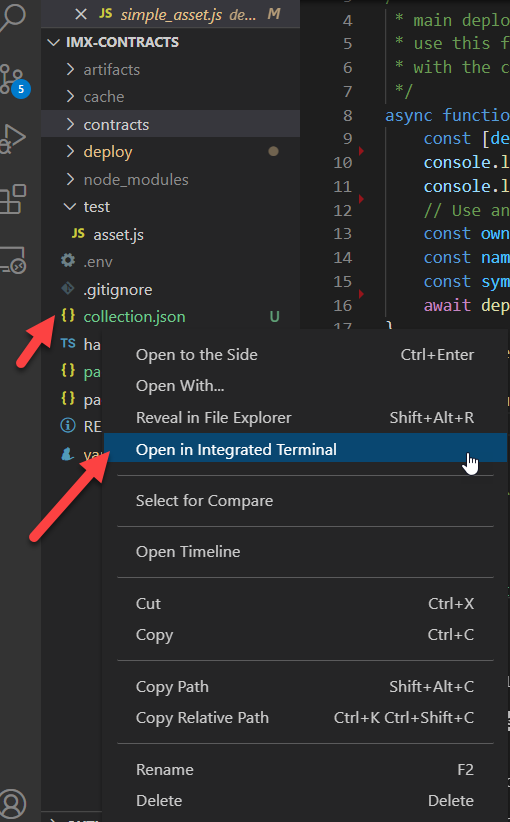

  1. Right click on any file in the explorer
  2. Select 'Open in Integrated Terminal'

Open the integrated terminal

  1. Run npm install --include=dev and wait until the installation is completed.
  2. Save your work

Step 9: Deploy Contract

Before we can mint on Layer 2, we need to deploy a smart contract on Layer 1 to ensure assets can be withdrawn to Layer 1. Click here to learn more about the differences between Layer 1 and Layer 2.

  1. Run yarn hardhat run deploy/asset.ts --network ropsten
  2. It will take ~5 minutes to deploy your contract to Ropsten Etherscan
  3. Copy the deployed contract address

Step9_Deploying the contract

Check your work

Paste your contract address into Ropsten Etherscan. It should say contract in the upper left. If this says address, ensure you are on the correct network

Step 10: Add your NFT Collection to Immutable X

After deploying your contract to Layer 1, you will need to register it with Immutable X by creating a project and a collection.

  1. Download the imx-examples repo
  2. Open the folder in Visual Studio Code
  3. Rename .env.example to .env and save
  4. Fill in the following:
Field NameDescription
ALCHEMY_API_KEYAlCHEMY_API_KEY from step 7
OWNER_ACCOUNT_PRIVATE_KEYMetamask private key from step 2
COLLECTION_CONTRACT_ADDRESSDeployed contract address from previous step

Step10_1

  1. Save
  2. Run npm install

Step 11: Register as a User

Before you can create a project, you will need to register as a user. Registering as a user creates a Layer 2 wallet and enables us to make transactions on Layer 2.

  1. Navigate to the Ropsten Test Marketplace
  2. Press Connect Wallet
  3. Follow the prompts

Step 12: Create Project

A project is an admin level entity associatied with an owner wallet address. This address is needed to make changes like creating or updating collections. Begin by navigating to src/onboarding/2-create-project.ts.

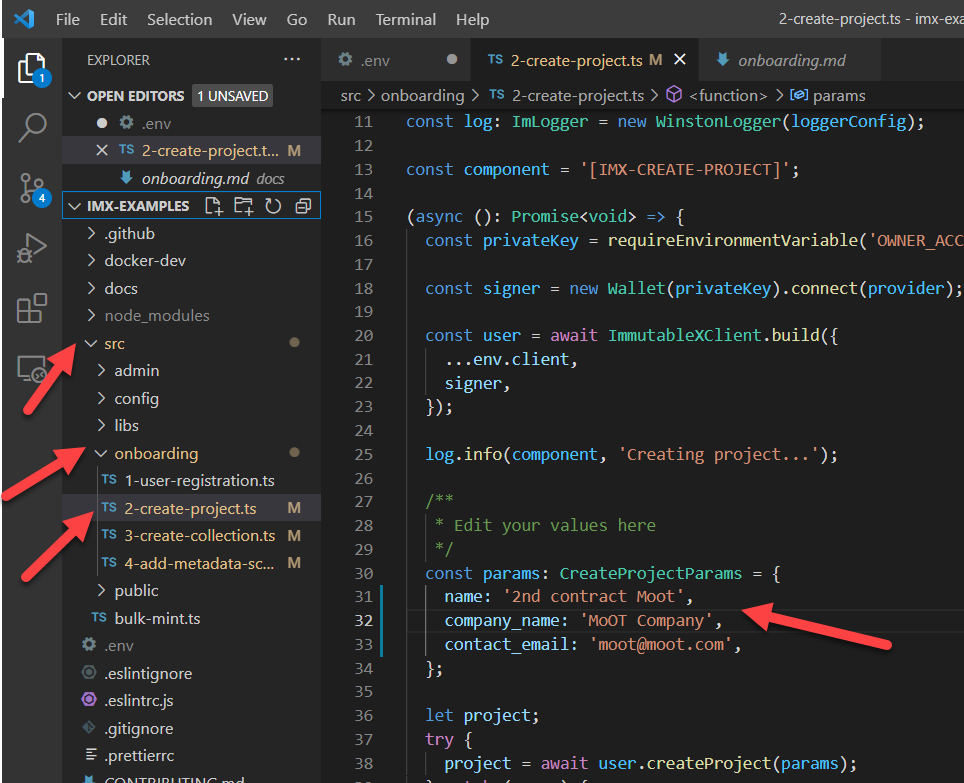

Onboarding Project

  1. Fill in name, company_name and contact_email
  2. Press save
  3. Run npm run onboarding:create-project
  4. Copy the Project ID from the output

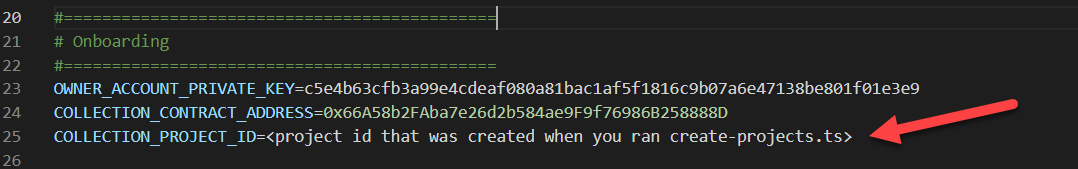

  5. Use this to populate the COLLECTION_PROJECT_ID in the .env file and press save

Step12

Step 13: Register Collection

A collection is a group of NFTs that share a smart contract and each collection belongs to a project. Collections are displayed on the marketplace to end users, eg Gods Unchained.

Navigate to the src/onboarding/3-create-collections.ts file and populate the following values:

Field NameDescription
nameName of your collection on the marketplace
descriptionThe description for your collection
icon_urlIcon that displays for your collection
metadata_api_urlMetadata API URL that we generated earlier (ensure there is no trailing /s)
collection_image_urlImage of your collection that displays on the marketplace

To register the collection, run the command npm run onboarding:create-collection.

info

Remember to remove the prepending double slashes ”//” in relation to the fields described below as these comment out the code.

Step 14: Create Metadata Schema

A collection's metadata schema describes the properties of the NFTs it can mint, as well as the potential values and types of those properties. These fields can be used as filters in the marketplace later on. Click here to learn more about Metadata Schema.

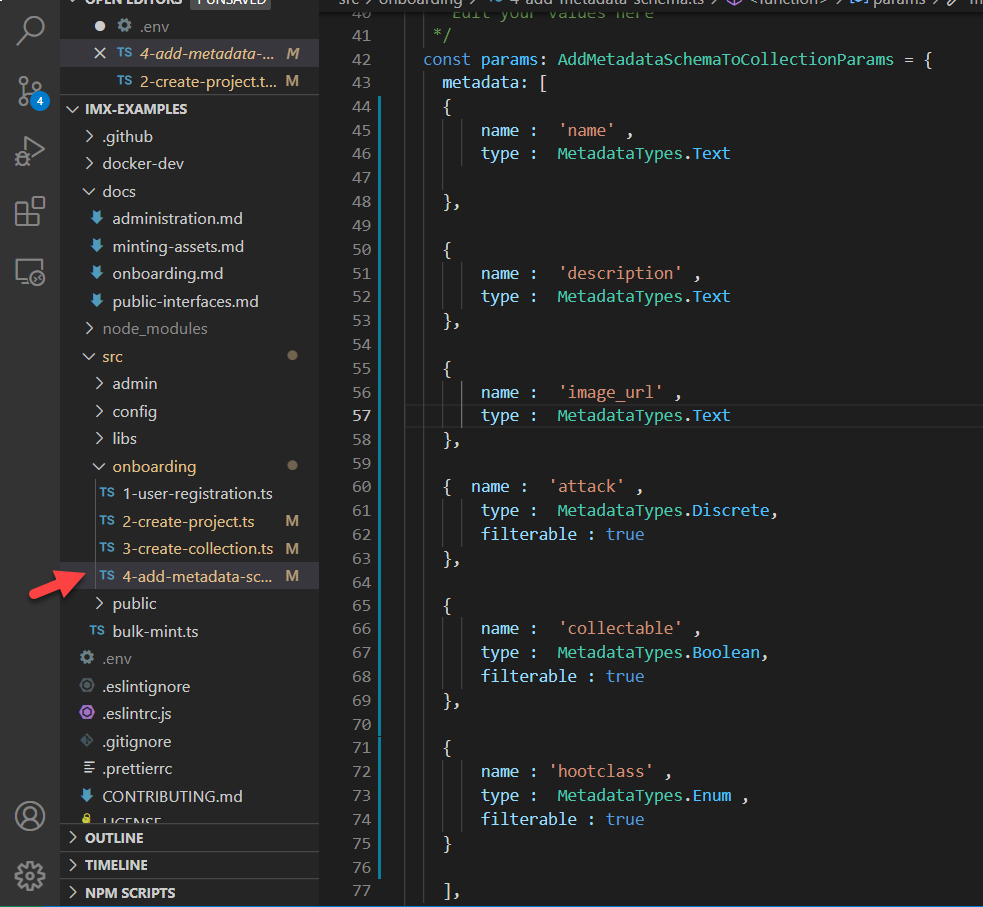

Navigate to src/onboarding/4-add-metadata-schema.ts and update metadata on line 43:

Add Metadata

You can use the example metadata schema provided here, or use your own. Copy and paste the code below into line 43, as shown in the above image.

Example Metadata Schema
{
name : 'name' ,
type : MetadataTypes.Text
},
{
name : 'description' ,
type : MetadataTypes.Text
},
{
name : 'image_url' ,
type : MetadataTypes.Text
},
{
name : 'attack' ,
type : MetadataTypes.Discrete,
filterable : true
},
{
name : 'collectable' ,
type : MetadataTypes.Boolean,
filterable : true
},
{
name : 'class' ,
type : MetadataTypes.Enum ,
filterable : true
}

To add metadata schema to the collection, run the command npm run onboarding:add-metadata-schema in the integrated terminal.

Step 15: Mint NFT

Now that we have added our contract to Immutable X, the final step is to add our assets to the blockchain by minting them.

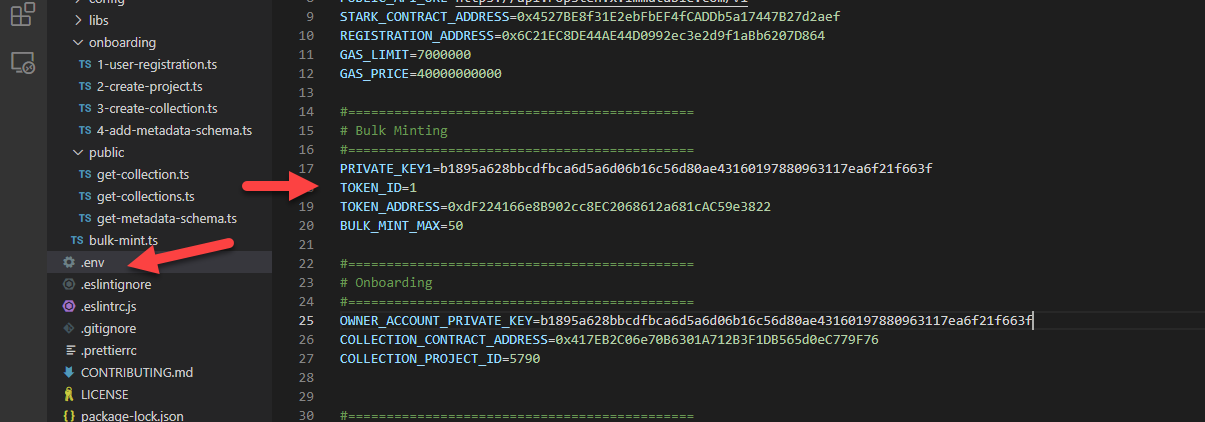

  1. Navigate to the .env file
  2. Fill in the follow under the 'Bulk Minting' section

Specify Metadata

Field nameDescription
PRIVATE_KEY1MetaMask Private Key - Copy from 'Onboarding' section.
TOKEN_IDEnter 1 as the TOKEN_ID if this is the first time you’re minting from your collection. If you have already minted a few NFTs, then take the TOKEN_ID of the last minted NFT, and increment it by 1 and enter it here.
TOKEN_ADDRESSSame as COLLECTION_CONTRACT_ADDRESS - Copy from 'Onboarding' section.
BULK_MINT_MAXEnter 50 for this tutorial. This allows us to configure the maximum number of NFTs that can be minted in bulk in one go.
Save

Don't forget to press save after updating the values

To Mint

  1. Run npm run bulk-mint -- -n <number of tokens to mint> -w <your wallet address> where
  • <number of tokens to mint> is the number of NFTs you wish to mint. In this tutorial, this number is 3.
  • <your wallet address> is the MetaMask wallet you’re minting your NFTs to. For each contract (in other words, for each TOKEN_ADDRESS) you are minting tokens for, remember to set the TOKEN_ID in .env to the latest incremented index.

Step 16: List your NFT

Our assets will now be accessible in our Ropsten Wallet. However, for other users to see them we will need to list them on the marketplace.

  1. Visit the Ropsten IMX Marketplace
  2. Click Connet Wallet and follow the prompts
  3. Click My Assets --> Select an NFT
  4. Press List for Sale

Conclusion

Congratulations on minting and listing an NFT on the Ropsten test network!

Feedback

This tutorial covered the simplest implementation of minting, however we are continuing to build out the workflow. Feel free to leave any feedback here.

If you'd like to reuse these steps for a mainnet launch, note the following changes:

StepChange
Step 2Metamask Network should use Ethereum Mainnet
Step 9.1yarn hardhat run deploy/asset.ts --network mainnet
Step 10Set ETH_NETWORK to mainnet in the .env file
Step 10Remove ropsten from the URL in PUBLIC_API_URL in the .env file
